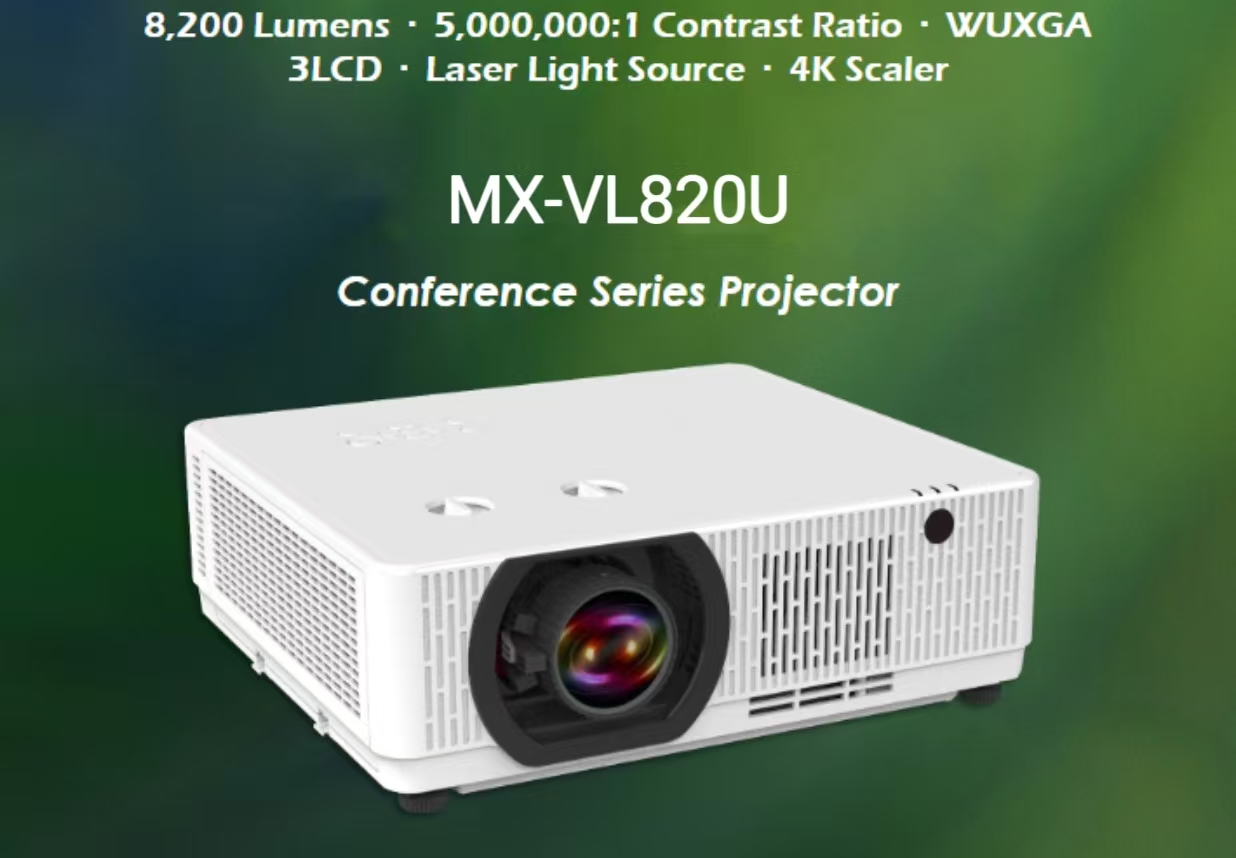

| 8200 Lumen 3LCD Laser Projector | | Key parts | | | | Model No. | MX-VL820U | | Brightness(Lumen) | 8200 | | Resolution | WUXGA | | Light source | NICHIA LASER | | Overall Spec | | | | Panel | Display Panel | 3x0.64" with MLA | | Display Technology | Liquid Crystal Display | | Native Resolution | WUXGA (1920 x 1200) | | Light source Life time | Full Normal/Normal mode | 20000hrs | | ECO1 mode | 30000hrs | | ECO2 mode | 30000hrs | | Projection Lens | F | 1.58-2.02 | | f | 15.3mm-24.6mm | | Zoom/Focus | Manual | | Throw Ratio | 1.08 (wide)-1.76 (tele) | | Zoom Ratio | 1.6 | | Screen size | 30-300 inch | | Lens Shift | V: + 60%, H: +/- 29% | | CR | Contrast Ratio
(FOFO) | 5000000:1 | | Noise | Noise(dB) *1 | 39dB(Normal)
31dB(ECO1)
29dB(ECO2) | | Uniformity | Uniformity(Actual Min)
-JISX6911 | 80% | | AR | Aspect Ratio | Native:16:10
Compatible: 4:3/16:9 | | Terminal(I/O port) | | | | Input | VGA | *1 | | HDMI 1.4B(IN) | *2 | | USB-A | *1 | | USB-B | *1 (Display) | | RJ45 | *1 (Display) | | HD BaseT | *1(Optional) | Audio in
(mini jack,3.5mm) | *1 | | Output | VGA | *1 | Audio out
(mini-jack,3.5mm) | *1 | | Control | RS232 | *1 | | RJ45 | *1 (Control) | | USB-B | *1 (For upgrade) | | General Spec | | | | Audio | Speaker | 16W*1 | | Dust filter | W/Filter | | Filter Life time | 8000h | | Power Consumption | Power Requeirements | 100~240V@ 50/60Hz | Power Consumption
(Normal) (Max) | 425 | Power Consumption
(ECO1) (Max) | 285 | Power Consumption
(ECO2) (Max) | 235 | ECO Standby Mode
Power Consumption | <0.5W | | Temp.&Humidity | Operating Temp. | 0m≤Altitude≤1700m,
Ambient 0°C~50°C | 1700m＜Altitude＜3000m,
Ambient 0°C~40°C | | Operating humidity. | 20-85% | | Store Temp. | -10 to 50°C | | High altitude | 0~3000m | | Other Functions | | | | Keystone | Keystone Correction
(Lens@center) | V: ±30°
H:±30°
Pincushion/Barrel Correction
6 Corner Geometry correction
4 Corner Correction
Grid image tune | | OSD | Languages | 26 languages: English, German, French, Italian, Spanish, Polish,
Swedish, Dutch ,Portugese, Japanese, Simplified Chinese,
Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish,
Norwegian, Danish, Indonesian, Hungarian, Czech,
Kazak,Vietnamese,Thai, Farsi | | LAN Control | LAN Control-RoomView
(Crestron) | Yes | | LAN Control--AMX Discovery | Yes | | LAN Control--PJ Link | Yes | | Scanning Frequency | H-Synch Range | 15~100KHz | | V-Synch Range | 24~85Hz | | Display Resolution | Computer Signal Input | VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz | | Video Signal Input | 480i, 480p, 576i, 576p, 720p, 1080i and 1080p | | SW setting | Auto Setup | INPUT SEARCH,AUTO PC,Auto Keystone | | Blank | Yes | | Suspend | Yes(5 minutes no signal as default) | | Picture mode | Dynamic,Standard,Cinema,
Colorboard,sim-DICOM,Blackboard(Green) | | Cooling time | 0s,normal,30s | | Auto Ceiling | Yes | | D-Zoom | 1~33 | | Others | 360° projection | Yes | | Edge Blending | Yes | | Dimension&Weight | | | | Product Size (mm) | 405 (W)*358(D)*137(H) | | Net. Weight (KG) | ~7.9KG | | Packaging Size(mm) | 510 (W)*498(D)*260(H) | | Gross. Weight (KG) | ~10.4KG | | Accessory | | | | Manual Languages | Chinese,English | | Standard Accessaries | Power cord, HDMI cable,Remote control | | Warranty | 3years |
|
