20000lumen WUXGA 3LCD laser projector support 4K for 3D mapping
projection
SMX MX-V20000U Laser Projector is a laser LCD engineering projector, which adopts a new generation
of Laser light source technology. The maximum brightness can reach
30,000lm brightness and a long life of up to 20,000 hours, so that
it maintains a bright display throughout its life.It avoids the
radiation of light to the human body, and can completely solve the
interference of shadows on the screen.It adopts liquid crystal
display (LCD) technology with a color depth of 1.07 billion colors.
Technologies:
High Brightness, High Contrast, HighPer formance and
Maintenance-free LCD Laser Projector
High Brightness, High Contrast
The high brightness of 20,000 Lumens and high contrast of
3,000,000:1 enables realistic image reproduction, even in bright
projectionenvironment.
High Performance and Low maintenance
Newly designed cooling system with sealed optical engine,
filter-lessdesign and improve air flow provide high performance.
Up to 30,000 hours laser light source and filter-less
design,reducingmaintenance time and total cost of ownership.
Versatile Installation Capability
Pin cushion/Barrel Correction
4 corner/ 6 corner Keystone Correction
360 Free Orientation installation
Parameters:
| SMX 20000 Lumen 3LCD Laser Projector | | |
| Model# | MX-V20000U |
| Panel | Display Panel | 3x1.0" |
| Display Technology | Liquid Crystal Display |
| Native Resolution | WUXGA (1920 x 1200) |
Laser
Life time | Normal mode | 20000hrs |
| ECO mode | 30000hrs |
| Projection Lens(STD) | Zoom/Focus | Motorized |
| Zoom Ratio | 1.62 |
| Key parts | Screen size
(Performance guarantee range) | 60-500 inch
(80-500 inch) |
| Lens Shift V | Lens Shift H |
| Contrast Ratio(Min) | 3,000,000:1 |
| Aspect Ratio | Native:16:10
Compatible: 4:3/16:9/normal/16:6 |
| MAX Dimensions
(WxHxD mm) | 599X240.2X493.8mm (not including len) |
| Net. Weight (KG) | 28.9Kg (not including len) |

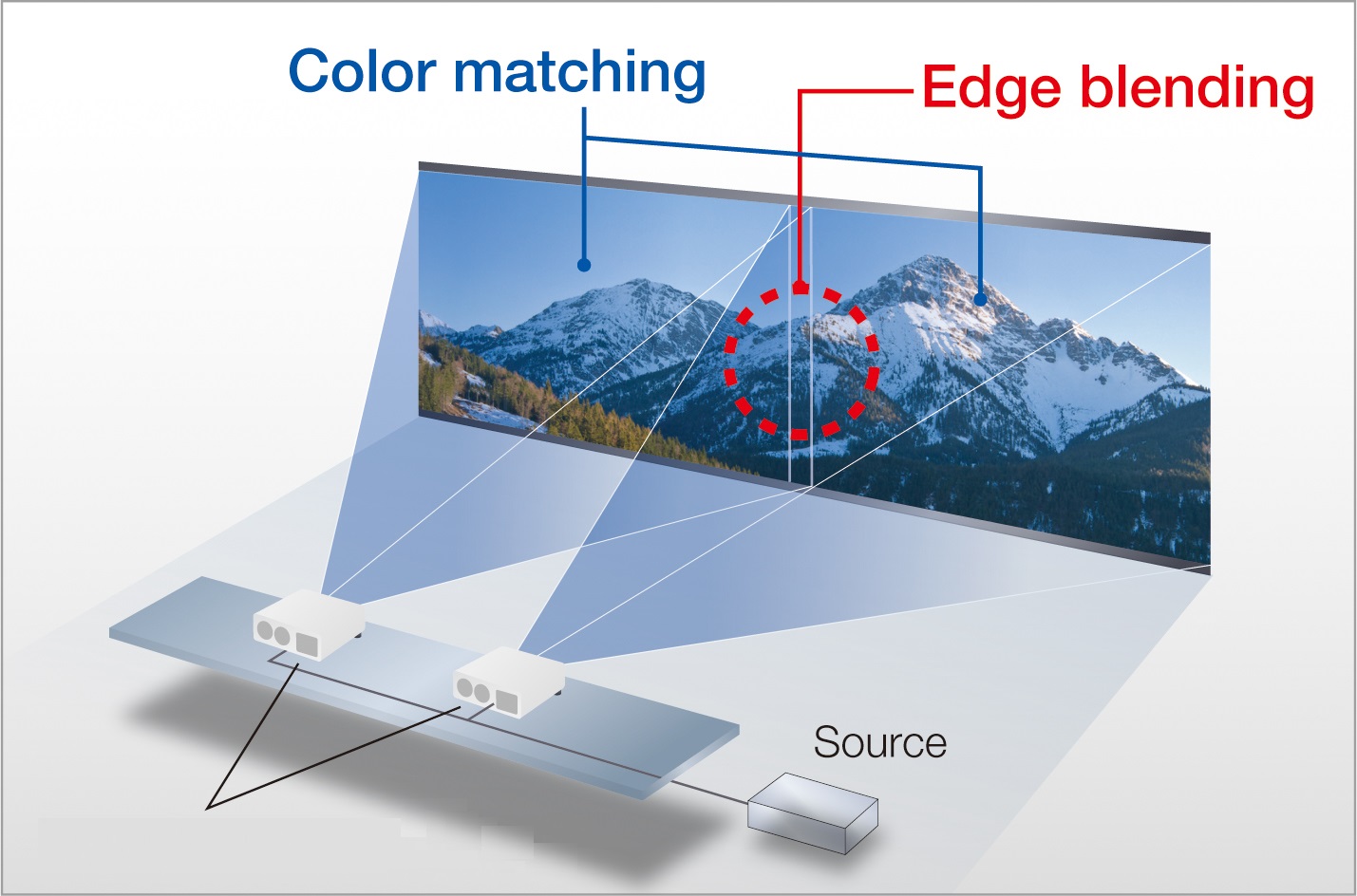

Edge Blending function
The edge blending function enables multiple projectors to splice
the complete picture. Seamless connection, the pursuit of bright
super large images, pure colors, high-resolution display effect
Recommend Application:
*Auditoriums
*Large Conference rooms
*Exhibitions / Events
*Museums/GalleriesTheatres/Halls
*Houses of Worship
*Signages
