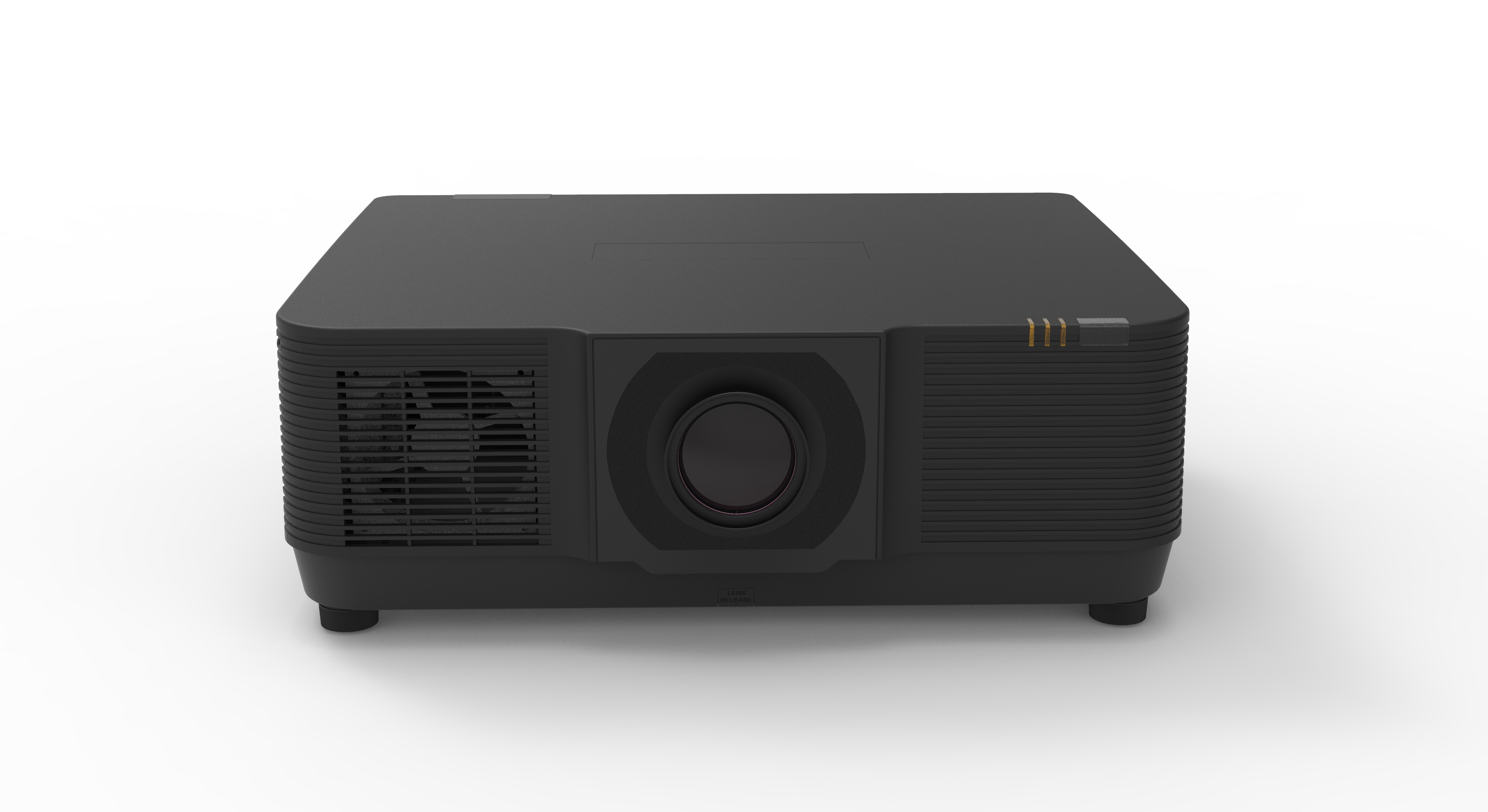

12000 Lumen WUXGA 1920*1200p 3LCD Laser projector for video mapping projection
Low Maintenance and Total Cost of Ownership
The 20,000hour laser light scurce and filter-less design mean there
are no lamps orfilters to replace, reducing maintenance time and
total cost of ownership.
High Performance, Low Fan Noise
Newly designed cooling systemwith sealed optical engine, flter-less
design andimprove air flow provides high perfomance and low fan
noise.
Functions and Features:
- With attractive performance and low maintenance
- With 3LCDX0.76" Panels,12000-lumen laser projector
- Sony's LCD technical solutions delivers large venue projection at
near true colors imaging performance
- Built-in HDBaseT enabels simplified installations with a single
cable forvideo, audio, and control signals.
- 3LCD + Laser Optical Engine. Supports 4K input
- 360 free orientation installation
Parameters:
| Key parts | | |
| | Panel | LCX206A-(B12 SML) |
| | PJ Lens | optional |
| | Light source | Laser |
| | Mainchip | Topaz Prime PWC895 |
| | Sony IC | CXD3553+CXA3832(1+3) |
| Brightness | | |
| | Brightness
( Ansi Lumens ) | 12000lm |
| Overall Spec | | |
| Panel | Display Panel | 3x0.76” |
| Display Technology | Liquid Crystal Display |
| Native Resolution | WUXGA (1920 x 1200) |
Light source
Life time | Normal mode | 20000hrs |
| ECO mode | 20000hrs |
Projection
Lens | Zoom/Focus | Powered |
| Throw Ratio(16:10) | 1.30-3.02 |
| F | F1.7~2.0 |
| f | 21.8-49.8 |
| Zoom Ratio | ‘2.3 |
Screen size
(Performance
guarantee range) | 50-500 inch
(80-200 inch) |
| Lens Shift V | +50%,-10% |
| Lens Shift H | ±20% |
| CR | Contrast Ratio(Min) | 100000:1 |
| Noise | Noise(dB) | Normal(90%): 35dB
ECO1(75% ): 32dB
ECO2(45% ): 32dB |
| Uniformity | Uniformity(Actual Min)
-JISX6911 | 80% |
| AR | Aspect Ratio | Native:16:10
Compatible: 4:3/16:9/normal |
Standard lens support lens shift
Optional spare lens / Different Projection Throw ratio a wide variety of lenses from short to long focus zoom lens makes
it possible for the projector to be installed in multiple
locations. For extra convenience, these lenses can be used for MX-X12000U. Both zoom and focus are powered as well as the
horizontal/vertical lens shift function. also, the projector can be
rotated around 360 degrees vertically so that the projector can be
easily installed for variety of situations
